Product Description

Product Application

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Main technical parameter
Basic technical parameter of buttonBasic technical parameter of signal lamp
Rated insulationAC 600V(50Hz/60Hz)Insulation resistance≥50MΩ
Conventional heating current10AContact resistance≤25MinΩ
Insulation resistance≥50MΩPf withstand voltageAC 2.5KV/min
Contact resistance≤25MinΩVoltage wave±20%
Mechanical life100x10000
pushbutton
50x10000
selector switch
Brightness60cd/m2
Electrical life500x10000
pushbutton
25x10000
Selector switch
Continuous working life10x10000h

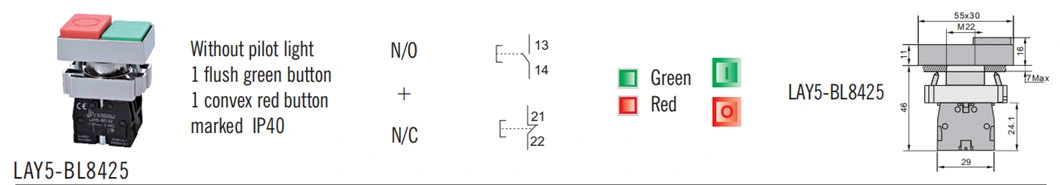

Lay5-Bl8425 Metal Button on-off Push Button Switch Double Poles SwitchLay5-Bl8425 Metal Button on-off Push Button Switch Double Poles SwitchLay5-Bl8425 Metal Button on-off Push Button Switch Double Poles Switch
Lay5-Bl8425 Metal Button on-off Push Button Switch Double Poles Switch
