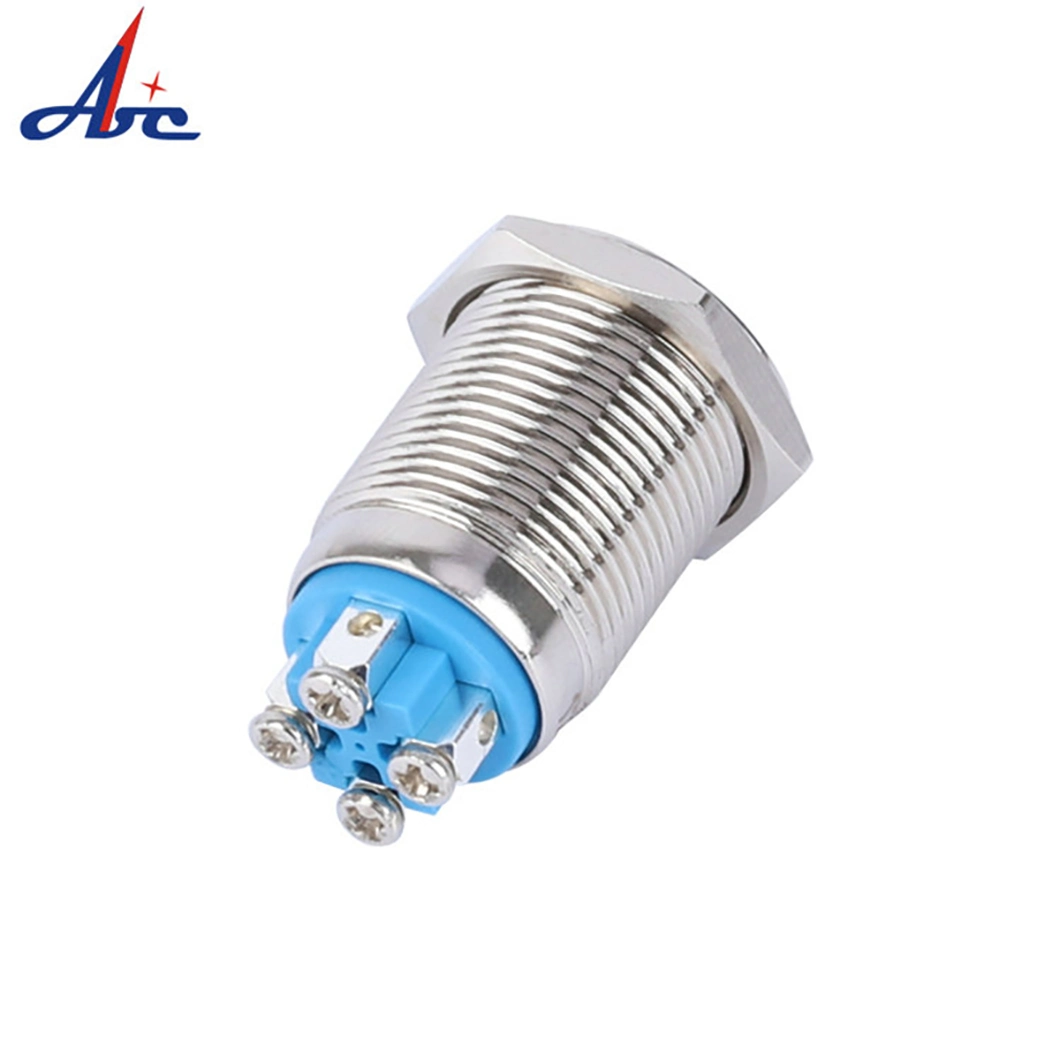

16mm ON-OFF button ring led switch push button switch
Product Description:| Product Name | Push Button Switch |
| Model | IB16U-P10ZJ-E |
| Mounting Hole | 16mm |
| Operation Type | Latching |
| Switch Combination | 1NO |
| Head Type | Flat round head |
| Terminal type | Screw Terminal |
| Illuminanted or not | Yes |
| Led Voltage | 12V (or 0V/2V/3V/6V/12V/24V/110V/220V/others) |
| Led Color | Blue (Red,green,yellow,orange,blue,white,purple) |
| Illuminated Type | Ring led illuminated |
| Enclosure Material | Brass nickel |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket,Resistor |
| Order Confirm | 1. What Led Color? 2. What Led Voltage? |
| Wiring Harness | Accept customization |
